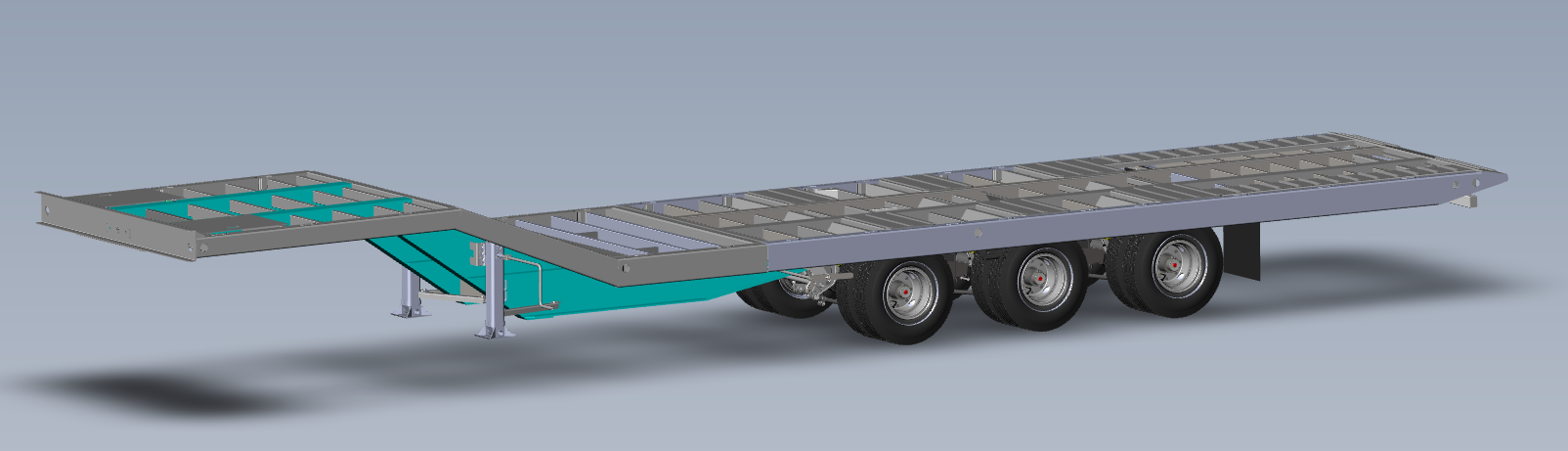

TDF-3SA-70K44

TDF-3SA-70K44

The information below states our pre-engineered builds. However, OSW does custom builds and allows changes to fit your needs. This generally will incur additional time for build.

Deck Height

34″ From Ground to Top of Deck

Deck Length

9′ Upper Fixed, 5′ Lower Fixed and 25′ Tiltable

Weight and Capacity

GVWR: 84,480 – Trailer Weight: 15,000 – Capacity (Distributed): 69,480

Decking

Apitong Outer Deck with No. 1 Grade Fir on Inner and Fixed Decks

Load Securement

28- Chain Slot/Stake Pockets (14 Per Side)

Axles

3 – 22,500 lb. – 71.5″ Track

Wheels

17.5″ x 6.75″ Uni-Mount 8 on 275mm Bolt Circle

Tires

215/75R 17.5 Radial Load Range H

Available Options Include

Lockable Tool Storage, Chain Binder Storage, D-Ring Package, Spare Tire Carrier, Full Apitong Decking, Chock Blocks, Undermount Winch Package
